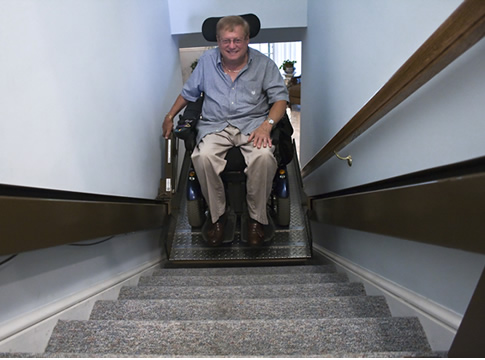

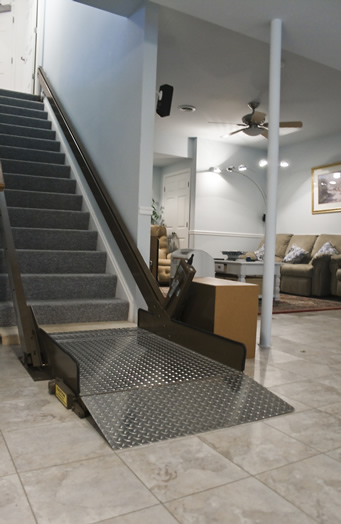

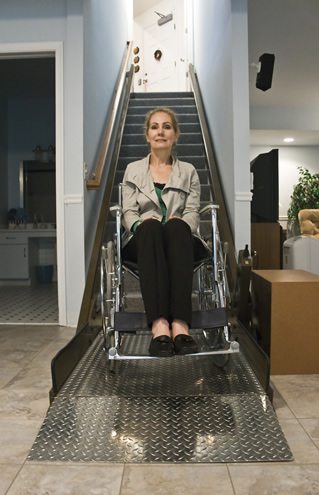

Butler Mobility Inclined Lift
The Butler Mobility
Inclined Plat-form Wheelchair Lift (IPL) is the perfect solution for a home with stairs where someone cannot transfer to a
chair lift or needs to have a wheelchair on both levels of their home.
Businesses, schools and churches can provide
wheelchair access. Public and corporate buildings can have a safe and reliable solution. Our lifts meet or exceed all National
Safety Code (ANSI/ASME code) requirements and have UL® and CSA certified components.
The Butler Mobility
Inclined Plat-form Wheelchair Lift (IPL) is designed to fit your stairs and can accommodate turning stairways and intermediate
landings.
The Butler Mobility Inclined Plat-form Wheelchair Lift (IPL) is ideal for providing ADA compliant
accessibility in heritage buildings, schools, churches and restaurants. With the availability of many colors and finishes,
you can be sure that the wheelchair lift will blend in with the building's decor.
Call Stations
The Butler
Mobility Inclined Plat-form Wheelchair Lift (IPL Call stations are operated by a computer based lift control system that intuitively
guides the user through the operating sequence by illuminating the appropriate button to push. Optional Fold and unfold functions
are fully automated by simply pushing the easy to use call station buttons.
Drive System
The ultra-quiet Drive
System is located at the upper end of the Artira and is available in two arrangements; the standard Drive Box and Compact
Drive; both drive systems operate using Mains Power.
Under Platform, Bi-directional and Leading Ramp Sensors
The
sensors will automatically stop the lift if the platform should encounter an obstruction.
Smooth Start and Stop
The
Butler Mobility Inclined Plat-form Wheelchair Lift (IPL) reduces the speed of travel by 50% prior to reaching corners and
is programmed to slow the platform travel speed when approaching or departing the landings.
Butler IPL Specifications
Standards:
ASME A18.1 (Safety Code for Platform Lifts and Stairway Chairlifts)
Capacity:
500 lbs (227 kg) or 750 lbs (340 kg)
Location:
Suitable for indoor use
Guide Rails: Heavy
gauge steel with top and bottom mounting brackets
Top brackets are adjustable in 2 dimensions
AC Power:
120 VAC, 15A dedicated circuit
Drive system: Dual chain drive with motor,
transmission and controller at bottom, Motor: 1 hp
Variable frequency controller for smooth stops and starts
Speed: up to 21 feet (6.4 m) per minute
Battery backup suitable for up and down travel, approximately 6-12 round trips
Change of direction delay timer
"Plug and Play" for minimal field wiring
Controls: Constant
pressure controls, 24VDC low voltage. Emergency stop switch on platform
Optional keyed controls
Call-send stations can be flush mounted or surface mounted
Platform:
Platforms are sized specifically for each application
Platforms have safety strips to correctly position the wheelchair
Front-load platforms have 6" high safety guards on each side.
Side-load platforms have a 6" high safety guard on the non-load side
Side-load platforms have a 36" high tubular safety guard at the front
Safety
Runaway platform safeties in each rail on trolleys
Features:
Safety switches at front and rear of platform, and Overspeed governor
Locking front ramp and guard for front-load
Safety switch to ensure ramp is locked in place and Under-platform safety panel
Broken/slack chain safety switches, and Overtravel safety switch
Ratcheting descending safety clutch
Finish:
Beige and brown are standard, other colors are available
Warranty
5 year warranty on all parts
1year labor warranty
